PRISM STEPPER METERING PUMPS

The PRISMA dosing pump is the best solution for the highest precision dosing with extreme reliability. The versatile stepper motor and sophisticated MultiFunction software offer absolute control over dosing speeds and working modes, as well as high flexibility.

The ENCODER control knob allows easy navigation through configuration menus and control and adjustment of working parameters. The backlit display can also signal different working states: pump running; stand-by; warning; alarm.

TURNDOWN RATIO
PRISMA pumps offer extremely precise control with an incredible turndown ratio of up to 4800:1. This allows the dosing process to be subdivided up to a maximum of 4800 steps to enable the most precise and even distribution of the product to be dosed.

SLOW MODE.
The Slow Mode function, when enabled, allows the suction speed to be reduced from 100% to 1% of normal speed, making priming and dosing easier, more reliable and accurate even with very viscous liquids.

PRISMA

PRISMA is a metering pump with a diaphragm stepper motor. The position and speed of the diaphragm are controlled by the microprocessor for the entire delivery/suction cycle.

PRISMA is equipped with Level Control, Alarms and Stand-by, while working modes include: Constant, Constant with external input, ppm, %, mlq, Pause-Work, Weekly, mA, Pulse, Volt, External Batch and Manual Batch. The included installation kit ensures the best and fastest installation.

DISCOVER ALL PUMP BODIES
Image link
MAX FLOW
80lh
MAX PRESSURE
25bar
POWER SUPPLY
12-24vdc
90-240vdc
PURGE
Manual
Particle element

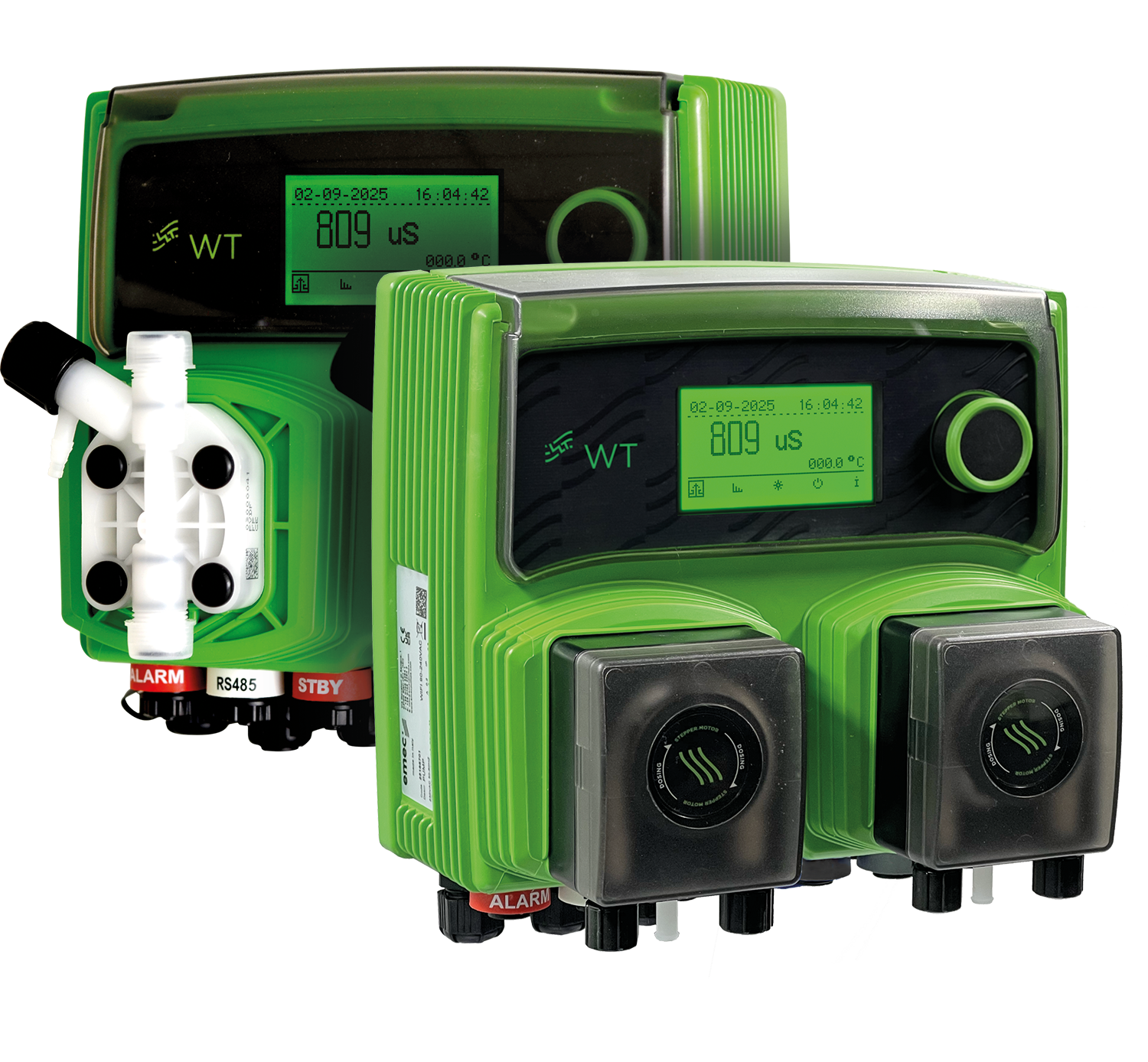

STEPPER METERING PUMPS WNPHXX

The WNPHxx series was created by EMEC to offer a complete and easy-to-use solution for pool water treatment and for all installation contexts that require prec ise, reliable and quiet operation, c ome in wellness and spas. WNPHxx series products are two-channel multi-parameter with temperature readout.

WNPHxx

ManualDatasheets

The WN series is distinguished by:

– optimized dosing capacity through the integration of an electronically controlled stepper motor. This allows real-time variation of rotation speed, and thus of dosage, in a range from 1% to 100%;

– ability to detect and manage electromechanical faults. The large backlit LCD screen and encoder knob allow for clear reading of data and easy navigation through menus, being able to quickly pogramm the system’s fuctioning modes, set alarms, and manage different outputs. The WNPHxx is also remotely controllable through the ERMES platform and the My Emec app.

The WN series includes:

WNPHxx, the compact all-in-one highest precision solution integrating a control instrument and two metering pumps

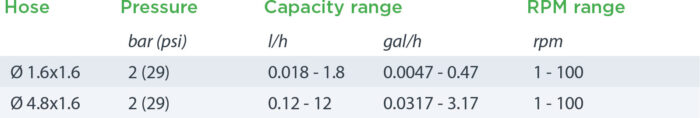

peristaltic stepper pumps in one product; WNPHxx-5, the compact all-in-one solution of highest precision that integrates a control instrument, a peristaltic stepper metering pump and a salt electrolysis output (max 5A).
